Malabar I Schooner Project

I'm about to try and build a working scale model of the Malabar I Schooner.

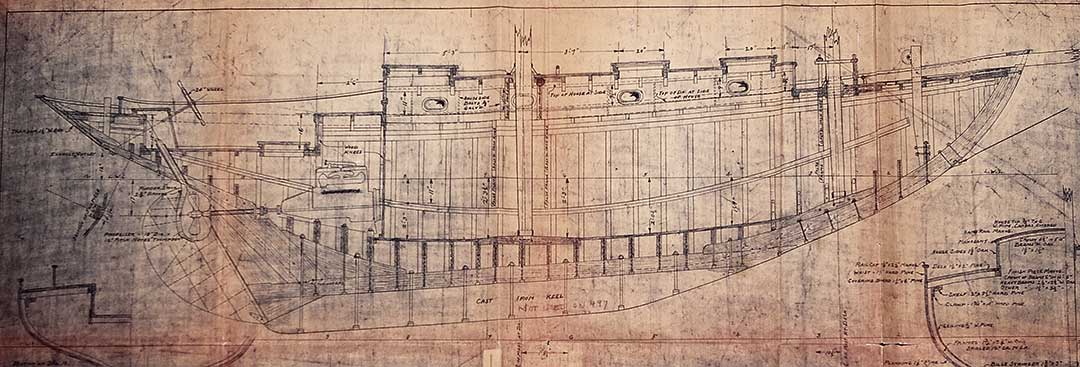

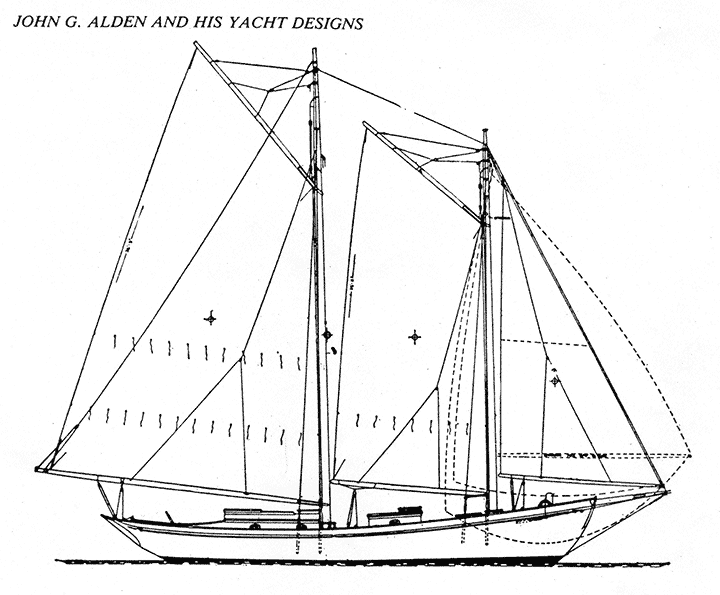

All I have is an empty hull and a set of old drawings.
Wish me luck.



Sept, 2014

So....
here we go...

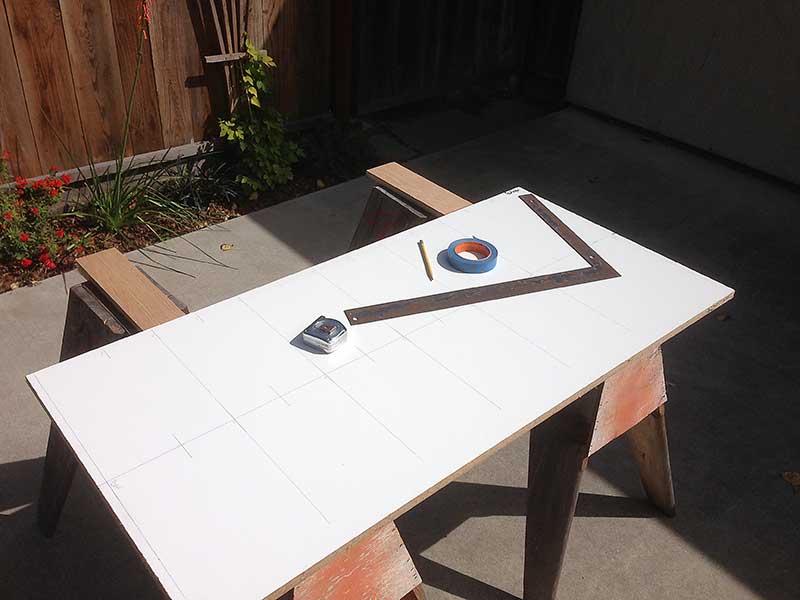

First I need a flat, stable reference platform, with station marks and a centerline:

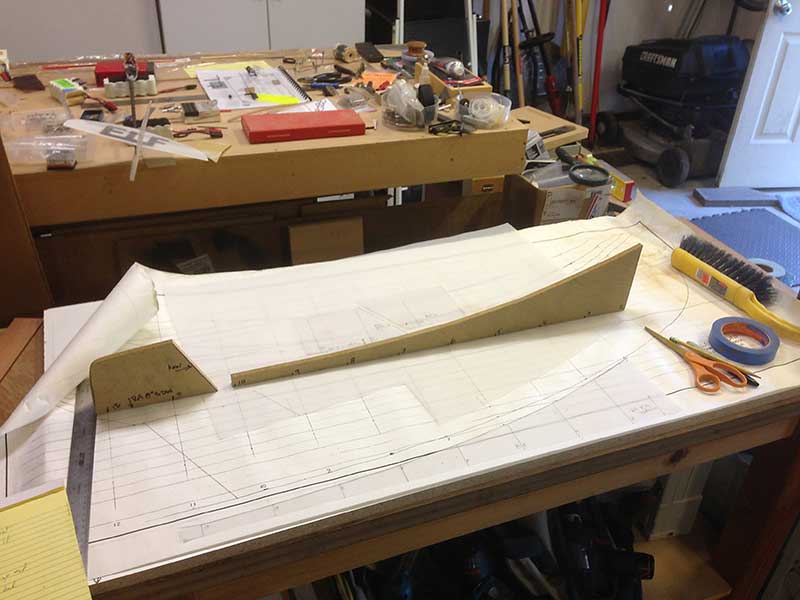

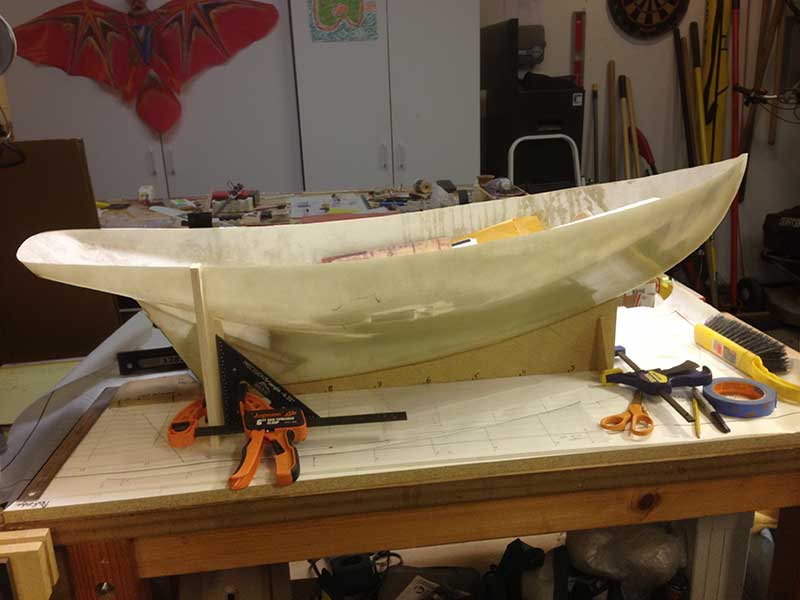

Then I built the keel support based on the drawings I had:

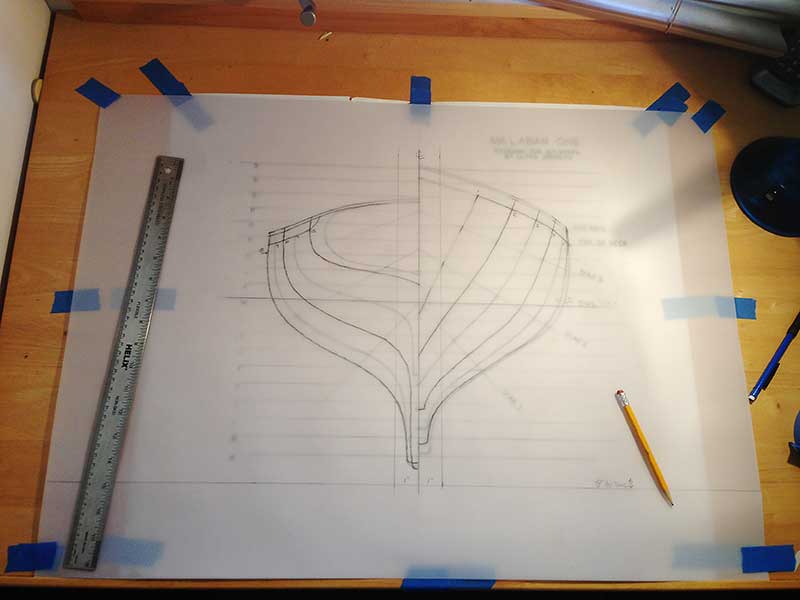

To make the rib supports, I traced the hull outlines at 5 of the 12 stations:

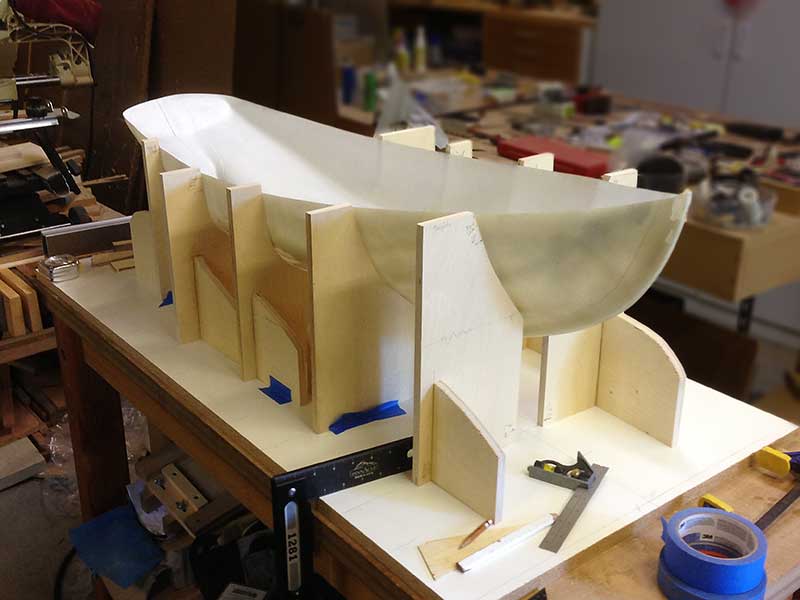

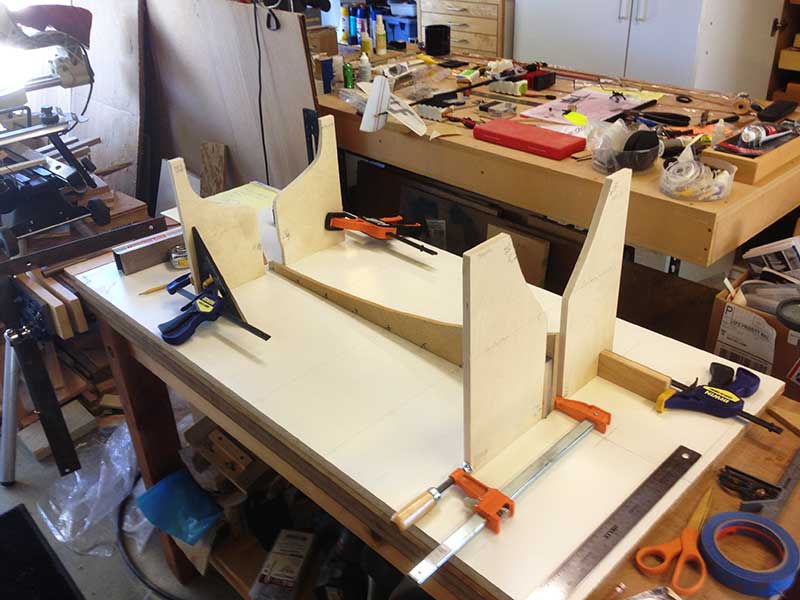

Then cut out pairs of rib supports to support the hull and give me reference marks at deck height.
